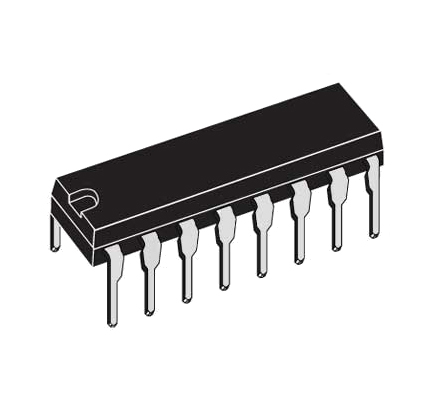

ULN2001A = L201 = DIL16 7x NPN Transistor Darlington Array je 30-50V 500mA General Purpose, DTL, TTL, PMOS, CMOS Solange Vorrat reicht

ULN2002A DIP16 7x NPN Transistor Darlington Array je 500mA 30V PMOS Solange Vorrat reicht

ULN2003A DIP16 = Darlington,Transistor-Array Treiber IC 7x NPN Transistor Darlington Array je max 50V 500mA ( Peak 600mA ) +++ siehe auch weitere Bilder für Pinlayout usw. +++ Outputs can be paralleled for higher current Input = TTL / CMOS / PMOS / DTL compatible inputs Baugleich zu ULN2003A, uAA2003, uA2003, uaa2003, TBD62003A, tbd62003, upa2003, upc2003, uPC2003, ULQ2003A, TBD62003A, TBD62003A u.a.

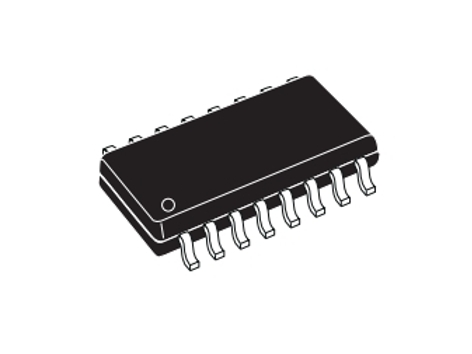

ULN2003-D SMD SO16 7x NPN Transistor Darlington Array je 50V 500mA TTL Input Technische Daten: Eingang max. 30V / 50V siehe Datenblatt Gemeinsamer Emitter Basiswid: 2,7KR Strom max: 0,5A = 500mA PeaK 600Ma JE aUSGANG

ULN2004A DIP16 7x NPN Transistoren Darlington Array je 50V 500mA CMOS Treiber IC 7x Darlington Transistor integriert Belastbarkeit je Transistor Kanal bis 50V DC 0,5A = 500mA ( Peak 600mA ) Masseschalter für Last Ansteuerung Vin bis 30V Output Voltage max 50V DC Typischer Einsatz Versorgung 6-15V DC INTEGRIERTE SUPPRESSION DIODEN FÜR INDUKTIVE LASTEN AUSGÄNGE KÖNNEN PARALLEL GESCHALTET WERDEN FÜR GRÖSSERER STRÖME Siehe auch weitere Bilder

ULN2004D SMD SO16 7x NPN Transistoren Darlington Array je 50V 500mA CMOS Treiber IC 7x Darlington Transistor integriert Belastbarkeit je Transistor Kanal bis 50V DC 0,5A = 500mA ( Peak 600mA ) Masseschalter für Last Ansteuerung Vin bis 30V Output Voltage max 50V DC Typischer Einsatz Versorgung 6-15V DC INTEGRIERTE SUPPRESSION DIODEN FÜR INDUKTIVE LASTEN AUSGÄNGE KÖNNEN PARALLEL GESCHALTET WERDEN FÜR GRÖSSERER STRÖME Siehe auch weitere Bilder
