Produkte filtern

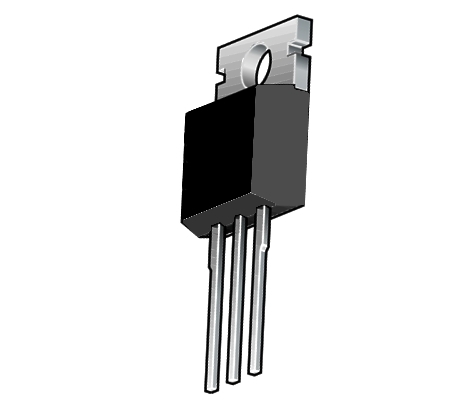

17088 Thyristor TO220 abgekündigtes Ersatzteil

17089 Thyristor TO220

17127 Thyristor TO220

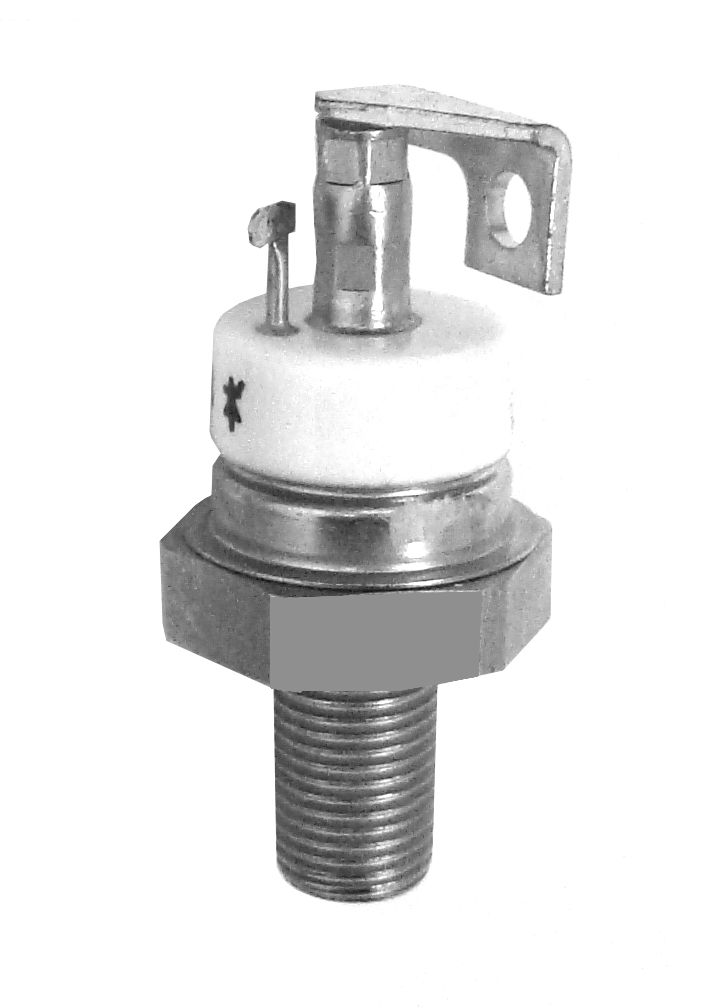

2N1793 SCR Singel Thyristor Schraubthyristor Hochstromthyristor Anode am Gehäuse / Ideal für Reparatur oder Ersatz von Ladeschaltungen, Motorensteuerungen, Experimente usw. Voltage Stage OFF max. 100V Max RMS Current 79A Max average on state current 50A 1000Amperes surge current 200V/us dv-dt Max Gate Voltage to Trigger: 3,0V Igate peak: 2A Vtm: 2,1Volt holding current: 75mA TO82 Schraubgehäuse M12 (Durchmesser Gewinde 12,6mm) ** solange Vorrat reicht

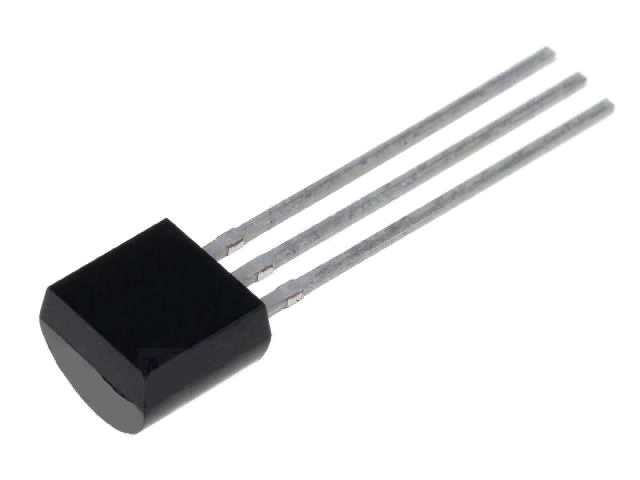

2N5061 SCR Thyristor TO92 bis 60V 510/800mA 2N5061 Thyristor TO92 Ersetzt viele TO92 Typen ideal als Ersatzteil HIGH SENSITIVE GATE Daten: Vdrm = bis 60V / IT (rms) = 0,8A = 800mA / IT (AV) 0,51A = 510mA Gate Holding current 5,0mA typisch ( Vak 7,0Vdc initiating current 10...20mA Gate trigger current 200uA ( Vak 7,0Vdc, RL 100ohm ) Delay time 3,0us abgekündigtes Ersatzeil solange Vorrat reicht !

95000H Thyristor TO220 TV

BR103 Thyristor Spannung: 30V Strom: 0,8A Igt/Ih<0,2/<2mA ** solange Vorrat reicht !

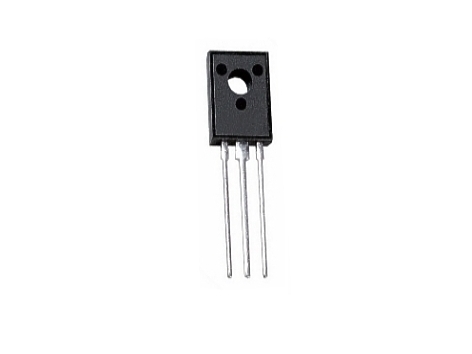

BR303 Thyristor TO126 30V 1A Spannung: 30V Strom: 1A Igt/Ih<2/<5mA ** solange Vorrat reicht !

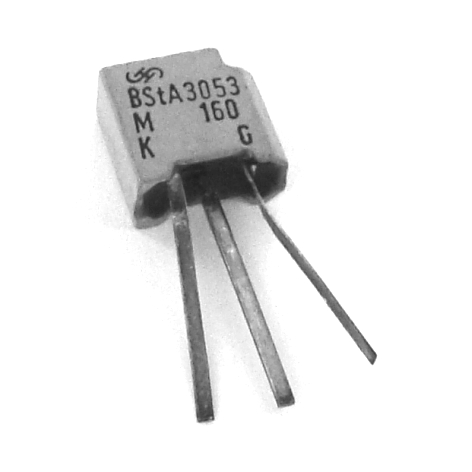

BSTA3053 Thyristor 800V 0,6A IG:10mA Vg: 4V abgekündigtes Ersatzteil

BSTCC0240R Thyristor mit Diode TO220 600V 5A Ig: 50-100mA Abgekündigtes Ersatzteil

BSTCC0246H Thyristor mit Diode TO220 700V 5A Ig: 50-100mA Abgekündigtes Ersatzteil

BSTCC0246R Thyristor mit Diode TO220 700V 5A Ig: 50-100mA Abgekündigtes Ersatzteil

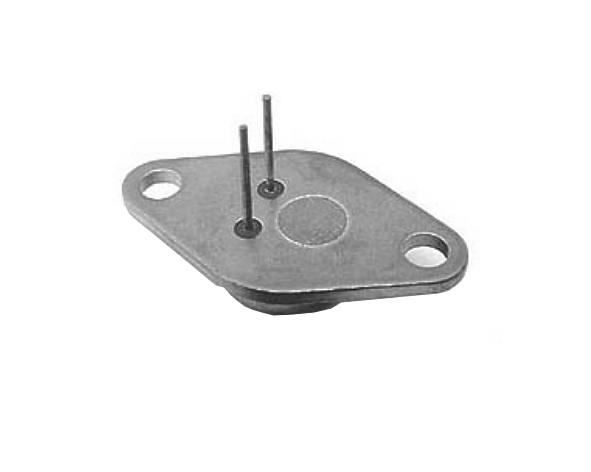

BT120 Thyristor TO66 TO213 bis 700V 3A Ig 40-100mA Universal Type ** solange Vorrat reicht !

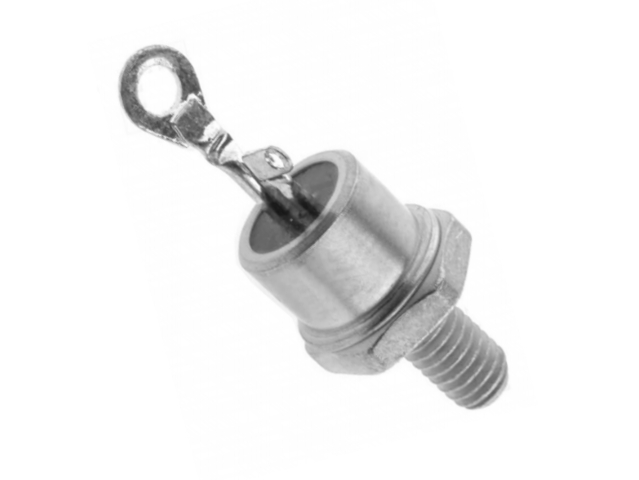

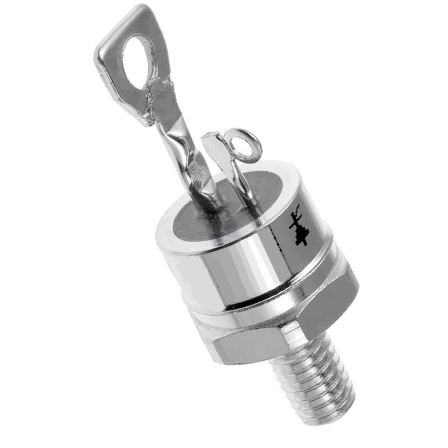

CS16-06go2 Thyristor SCR Schraubthyristor bis max 600V bis max. 30A I-Gate: 25mA Einsatz bis 600V Belastbarkeit: max 30A Schraubgehäuse M6 (Durchmesser Gewinde 5,7mm) Anode am Gehäuse ideal für Reparatur oder Ersatz von Ladeschaltungen, Motorensteuerungen, Experimente usw. ersetzt auch KT704 und viele mehr

Schraubthyristor max. 800V 60A Itrms: 120A Igate: 100mA Schraubgehäuse 6,35mm 28UNF Durchmesser Gewinde 7,2mm SW: 17 Anode am Gehäuse Ideal für Reparatur oder Ersatz von Ladeschaltungen, Motorensteuerungen, Experimente usw. Abmessungen siehe unter Abbildung 2 non RoHs ** solange Vorrat reicht !

Schraubthyristor max. 600V max. 8A / Igate: 15mA Schraubgehäuse M5 Anode am Gehäuse Ideal für Reparatur oder Ersatz von Ladeschaltungen, Motorensteuerungen, Experimente usw. Abmessungen siehe Abbildung 2 abgekündigtes Ersatzteil non RoHs ** solange Vorrat reicht !

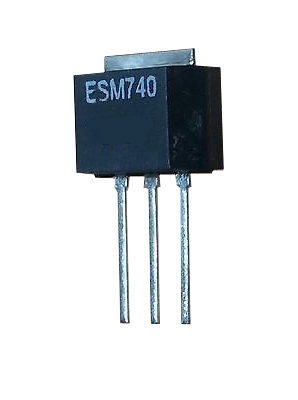

ESM740 Thyristor SCR 300V 3A Igt 50mA

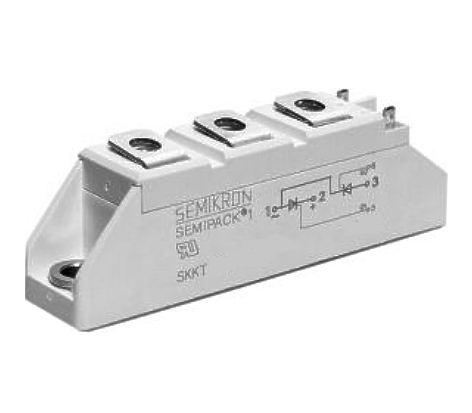

SKKT25/08D Thyristormodul bis 40A 800V Regelbaren Gleichstrom für Netzteile Power Supplys DC Motor Control Softstart AC Motor Soft Start Funktion Dimmer Hochleistungsdimmer, Dimmerpack etc. Professional light dimming ( Studio, Theater, Bühne usw. ) Power converter / Lighting and temperature control / Test- Steuerschaltungen / Experimentierschaltungen / Schule Versuch etc. Typischer Einsatz 12V 24V 36V 48V 110V 115V 230V 380V 400V 440V AC Hohe Dauerstromfähigkeit 40A bis 42A RMS Hohe Strossstromfestigkeit bis 400A Hohe thermische Leitfähigkeit Exzellentes Energie-/Leistungsverhältnis Technische Daten: Semikron 2fach Thyristormodul / Thyristor / Diode Modules / SCR Bridge Urrm = Max. Peak Recurrent Reverse Voltage bis 800V Itrms = 40A maximum value for continous operation ( Maximalwert für Dauerbetrieb ) I = Irms = 42A = RMS forward current Tcase=85 °C I = Durchlassstrom effektiv 40A (Id=38/42A 45°C) I = ITSM = 400A 10ms = max. forward surge current Ansteuerung der Gates Igt = IGT = Gate Trigger Vurrent Igate = min 150mA Vgt = VGT = Gate Trigger Voltage = min 3V ( 25°C) Vgd = VGD = Gate non Trigger Voltage = 0,25V TGD = 1usekunde ( sehr schnell ) Isolationspannung: 3600 1sek ac 50Hz / 3000V 50Hz 1min Gehäues: Industry standard outline SEMIPACK-1 Gehäuse A5 = (93x20x30) Abmessungen: B:20mm L:93mm H:30mm ( Siehe Zeichnung ) Mit nur wenigen Bauteilen einen Dimmerpack, Hochleistungs-Motoregler aufbauen z.B. mit Treiber IC TCA785 oder

SKKT26/08D Thyristormodul bis 50A 800V Regelbaren Gleichstrom für Netzteile Power Supplys DC Motor Control Softstart AC Motor Soft Start Funktion Dimmer Hochleistungsdimmer, Dimmerpack etc. Professional light dimming ( Studio, Theater, Bühne usw. ) Power converter / Lighting and temperature control / Test- Steuerschaltungen / Experimentierschaltungen / Schule Versuch etc. Typischer Einsatz 12V 24V 36V 48V 110V 115V 230V 380V 400V 440V AC Hohe Dauerstromfähigkeit 50A bis 52A RMS Hohe Strossstromfestigkeit bis 470A Hohe thermische Leitfähigkeit Exzellentes Energie-/Leistungsverhältnis Technische Daten: Semikron 2fach Thyristormodul / Thyristor / Diode Modules / SCR Bridge Urrm = Max. Peak Recurrent Reverse Voltage bis 800V Itrms = 50A maximum value for continous operation ( Maximalwert für Dauerbetrieb ) I = Irms = 52A = RMS forward current Tcase=85 °C I = Durchlassstrom effektiv 58A / 77A (Id=38/50A 45°C) I = ITSM = 470A 10ms = max. forward surge current Ansteuerung der Gates Igt = IGT = Gate Trigger Vurrent Igate = min 150mA Vgt = VGT = Gate Trigger Voltage = min 3V ( 25°C) Vgd = VGD = Gate non Trigger Voltage = 0,25V TGD = 1usekunde ( sehr schnell ) Isolationspannung: 3600 1sek ac 50Hz / 3000V 50Hz 1min Gehäues: Industry standard outline SEMIPACK-1 Gehäuse A5 = (93x20x30) Abmessungen: B:20mm L:93mm H:30mm ( Siehe Zeichnung ) Mit nur wenigen Bauteilen einen Dimmerpack, Hochleistungs-Motoregler aufbauen z.B. mit Treiber IC TCA785 oder

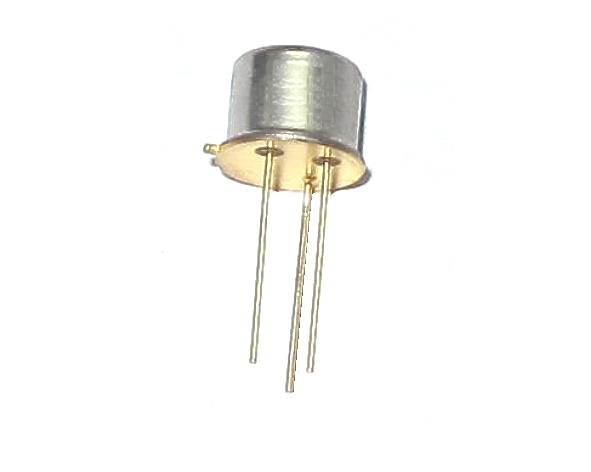

TAG103X TO39 Fast Thyristor <1MHz 30V 1A abgekündigtes Ersatzteil ** solange Vorrat reicht !

TIC116D Thyristor TO220 bis 8A 400V TIC 116 D Thyristor TO220 8A/400V Ig: 20mA Vgt 1,5V

TIC116M Thyristor TO220 bis 8A 600V TIC 116 M Thyristor TO220 8A/600V Ig: 20mA Vgt 1,5V

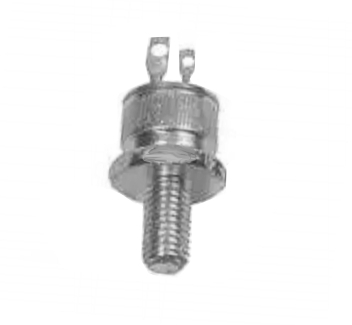

TW10N600CZ Thyristor SCR TO48 Schraubthyristor bis max 600V bis 10A I-Gate: 25-50mA Einsatz bis 600V Belastbarkeit: max 10A Peak 50A kurzfristg Schraubgehäuse M6 (Durchmesser Gewinde 5,8mm) Ideal für Reparatur oder Ersatz von Ladeschaltungen, Motorensteuerungen, Experimente usw.

TW6N600CZ Thyristor SCR TO48 Schraubthyristor bis max 600V bis 6A I-Gate: 25-50mA Einsatz bis 600V Belastbarkeit: max 6A Peak 35A kurzfristg Schraubgehäuse M6 (Durchmesser Gewinde 5,8mm) Ideal für Reparatur oder Ersatz von Ladeschaltungen, Motorensteuerungen, Experimente usw.
