1,2nF Kondensator 1,2nF 400V RM 7,5mm MKH Kondensator 1,2nF 400V RM 7,5mm 1200pF = 1N2 = 1,2nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 400V Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C

1,5nF Kondensator 1,5nF 400V RM 7,5mm MKH Kondensator 1,5nF 400V RM 7,5mm 1500pF = 1N5 = 1,5nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 400V Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C

100nF Kondensator 0,1uF 100nF 250V RM 7,5mm MKH Kondensator 100nF 250V RM 7,5mm 0,1uF = 100nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,0mm H: 5,0mm T: 3,0mm

12nF Kondensator 12nF 400V RM 7,5mm MKH Kondensator 12nF 400V RM 7,5mm 0,012uF = 12nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 400V Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C

150nF ( u15 ) Kondensator 150nF 100V RM 7,5mm MKH Kondensator 150nF 100V RM 7,5mm 150nF = 0,15uF 100V MKH Kondensator Rastermass RM: 7.5mm Nennspannung 100V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,3mm H: 5,5mm T: 3,0mm

15nF Kondensator 15nF 250V RM 7,5mm MKH Kondensator 15nF 250V RM 7,5mm 15nF Nennkapazität = 0,015uF Rastermass RM: 7.5mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abm.: B: 8,0mm H: 6,0mm T: 2,8mm

15nF Kondensator 15nF 400V RM 7,5mm MKH Kondensator 15nF 400V RM 7,5mm 15nF Nennkapazität = 0,015uF Rastermass RM: 7.5mm Nennspannung 400V Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C

18nF Kondensator 0,018uF 18nF 250V RM 7,5mm MKH Kondensator 18nF 250V RM 7,5mm 0,018uF = 18nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,0mm H: 4,6mm T: 2,0mm

2,2nF Kondensator 2,2nF 250V RM 7,5mm MKH Kondensator 2,2nF 250V RM 7,5mm 2,2nF = 2200pF Nennkapazität ( 2N2 ) Rastermass RM: 7.5mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,3mm H: 5,3mm T: 2,4mm

2,2nF Kondensator 2,2nF 400V RM 7,5mm MKH Kondensator 2,2nF 400V RM 7,5mm 2,2nF = 2200pF Nennkapazität ( 2N2 ) Rastermass RM: 7.5mm Nennspannung 400V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,5mm H: 5,6mm T: 2,2mm

2,2uF Kondensator 2,2uF 100V RM15mm MKH Kondensator 2,2uF 100V RM 15mm Rastermass RM: 15mm Nennspannung 100V DC ca. 63V AC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 16,1mm H: 11mm T: 6,8mm

2,7nF Kondensator 2,7nF 400V RM 7,5mm MKH Kondensator 2,7nF 400V RM 7,5mm 2,7nF = 2700pF Nennkapazität ( 2N7 ) Rastermass RM: 7.5mm Nennspannung 400V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,0mm H: 4,9mm T: 2,0mm

0,22uF Kondensator 0,22uF 220nF 100V RM 10mm MKH Kondensator 0,22uF 100V RM10 u22 = 0,22uF = 220nF Nennkapazität Rastermass RM: 10mm Nennspannung 100V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 10,5mm H: 5,0mm T: 3,0mm

220nF Kondensator 0,22uF 100V RM 7,5mm MKH Kondensator 220nF 100V RM 7,5mm u22 = 0,22uF = 220nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 100V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,2mm H: 6,0mm T: 4,1mm

0,22uF Kondensator 0,22uF 220nF 250V RM 10mm MKH Kondensator 0,22uF 250V RM10 0,22uF = u22 = 220nF Nennkapazität Rastermass RM: 10mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 10,8mm H: 8,0mm T: 5,0mm

22nF Kondensator 250V RM10 MKH Kondensator 0,022uF 250V RM10 0,022uF = 22nF Nennkapazität Rastermass RM: 10mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 10,8mm H: 4,9mm T: 2,5mm

22nF Kondensator 0,022uF 22nF 250V RM 7,5mm MKH Kondensator 22nF 250V RM 7,5mm 0,022uF = 22nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,0mm H: 6,2mm T: 2,0mm

27nF Kondensator 0,027uF 27nF 250V RM 7,5mm MKH Kondensator 27nF 250V RM 7,5mm 0,027uF = 27nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,0mm H: 5,0mm T: 2,0mm

3,3nF Kondensator 3,3nF 400V RM 7,5mm MKH Kondensator 3,3nF 400V RM 7,5mm 3300pF = 3N3 = 3,3nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 400V Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C

330nF ( u33 ) Kondensator 330nF 100V RM10 MKH Kondensator 330nF 100V RM10mm 0,33uF = 330nF Nennkapazität Rastermass RM: 10mm Nennspannung 100V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 10,8mm H: 5,5mm T: 3,9mm

33nF Kondensator 250V RM10 MKH Kondensator 0,033uF 250V RM10 0,033uF = 33nF Nennkapazität Rastermass RM: 10mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 10,3mm H: 4,2mm T: 2,0mm

33nF Kondensator 33nF 250V RM 7,5mm MKH Kondensator 33nF 250V RM 7,5mm 33000pF = 0,033uF = 33nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C

390nF Kondensator 0,39uF 390nF 100V RM 7,5mm MKH Kondensator 390nF 100V RM 7,5mm 0,39uF = 390nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 100V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,3mm H: 5,8mm T: 6,0mm

39nF Kondensator 0,039uF 39nF 250V RM 7,5mm MKH Kondensator 39nF 250V RM 7,5mm 0,039uF = 39nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,0mm H: 5,3mm T: 2,8mm

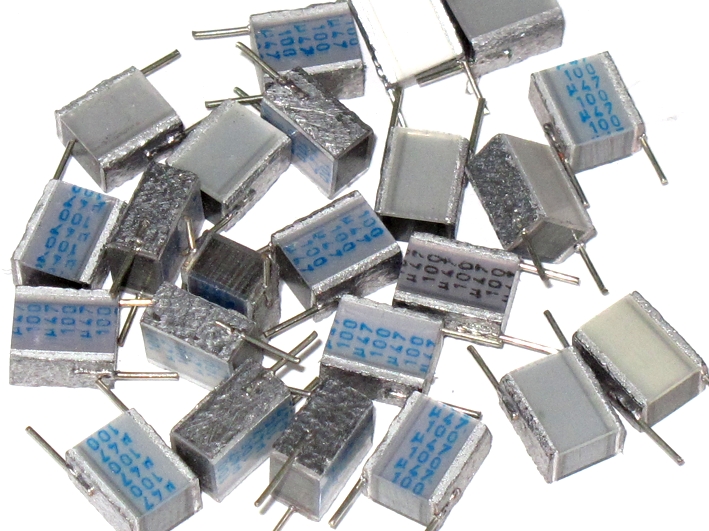

470nF Kondensator 0,47uF 470nF 100V RM 7,5mm MKH Kondensator 470nF 100V RM 7,5mm u47 = 0,47uF = 470nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 100V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,5mm H: 9,6mm T: 5,0mm

470nF Kondensator 0,47uF 470nF 100V RM 7,5mm MKH Kondensator 470nF 100V RM 7,5mm 0,47uF = u47 = 470nF Nennkapazität Rastermass RM: 7.5mm ( Pins isoliert ) Nennspannung 100V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,5mm H: 9,2mm T: 5,4mm

47nF Kondensator 0,047uF 47nF 250V RM 7,5mm MKH Kondensator 47nF 250V RM 7,5mm 0,047uF = 47nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,5mm H: 3,7mm T: 2,0mm

5,6nF Kondensator 5,6nF 400V RM 7,5mm MKH Kondensator 5,6nF 400V RM 7,5mm 5,6nF = 5600pF Nennkapazität ( 5N6 ) Rastermass RM: 7.5mm Nennspannung 400V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,0mm H: 4,3mm T: 2,0mm

0,68uF Kondensator 0,68uF 680nF 250V RM 15mm MKH Kondensator 0,68uF 250V RM15 0,68uF = 680nF Nennkapazität Rastermass RM15 Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 16,1mm H: 10,3mm T: 6,0mm

68nF Kondensator 0,068uF 68nF 100V RM 7,5mm MKH Kondensator 68nF 100V RM 7,5mm 0,068uF = 68nF Nennkapazität Rastermass RM: 7.5mm Nennspannung 100V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 8,0mm H: 5,2mm T: 2,0

68nF Kondensator 250V RM10 MKH Kondensator 0,068uF 250V RM10 0,068uF = 68nF Nennkapazität Rastermass RM: 10mm Nennspannung 250V DC Toleranz: 5 % Material: Polyäthylentherephthalat Temperatur, max.: -55 ... +100 °C Abmessungen: B: 10,8mm H: 5,2mm T: 3,0mm
